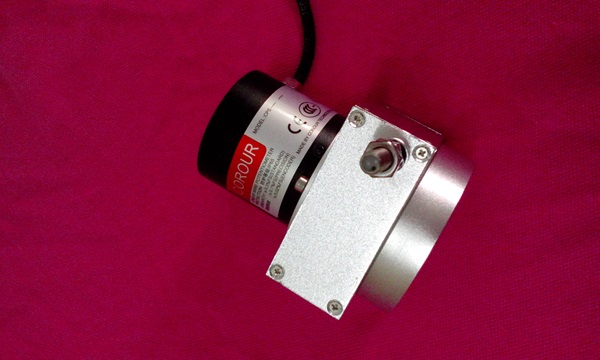

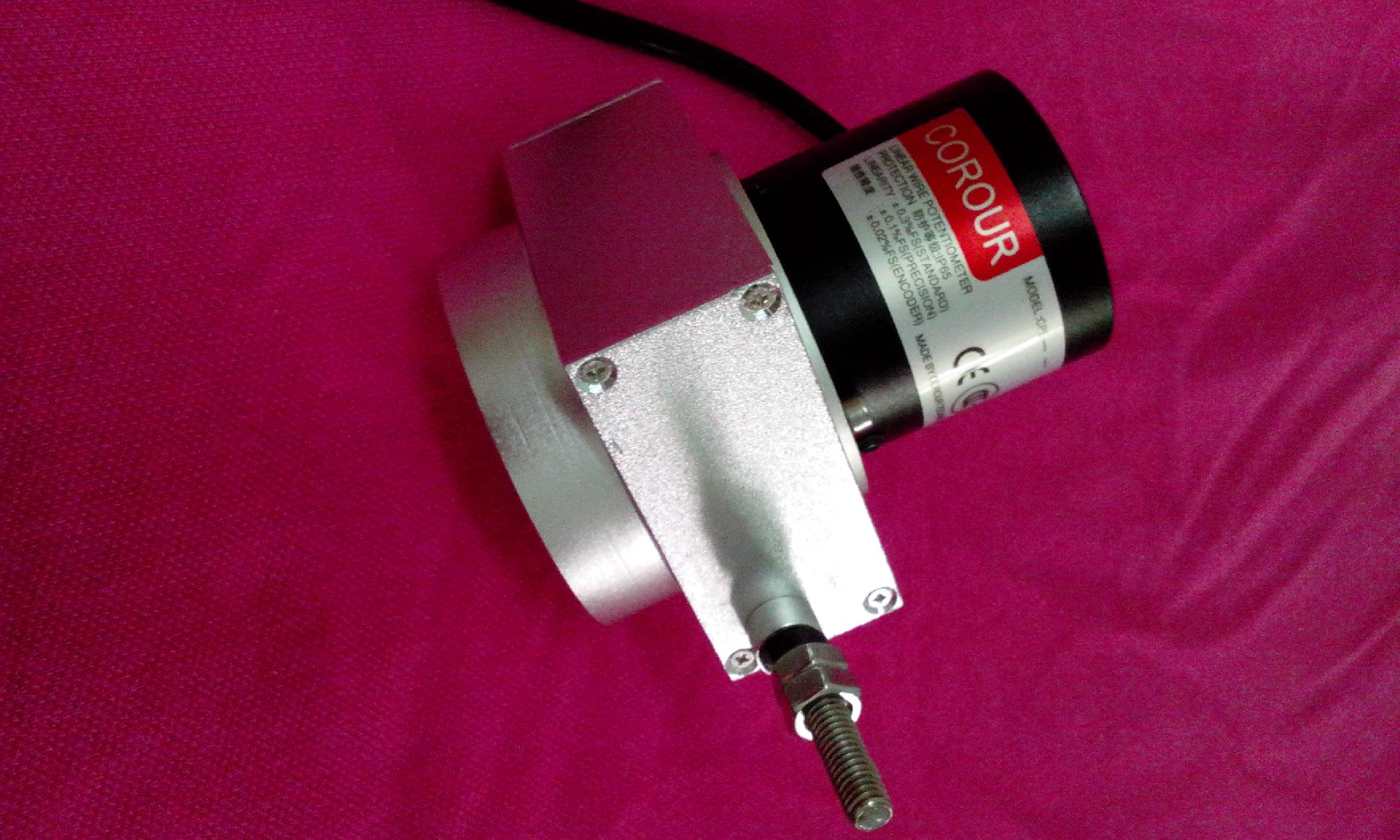

CPS-S-500-MA拉绳位移传感器

Output Signal Mode輸出信號模式

Resistance(Potentiometer) 0-10V, 0-5V,4-20mA

Linearity線性度

±0.25%FS(standard class);±0.10%FS(precision class)

Repeatability重複性

±0.002%FS

Resolution解析

Essentially infinite本质无穷

Sensor传感器

Wire-winding and hybrid potentiometer绕线混合电位器

Input Resistance輸入電阻值

5Kohm±10%FS(standard class),±5%FS(precision class)

Recommended Input Voltage輸入電壓

30VDCmax.,best voltage at5/10Vdc

Power Rating(watts)额定功率

0.5Wat

Max.Measuring Wire Velocity( go and back )最大往复速度

600mm/sec

Starting force拉力

≦2200g

Measurement Wire線徑規格

Diameter1mmSUS304 with fluorin-coated

Weight重量

≤3500g

Operating Temp.工作溫度

-40℃～+85℃

Storage Temperature儲存溫度

-40℃～+85℃

Vibration震動

10Hz to 2000Hz

Protection保護等級

IP67
