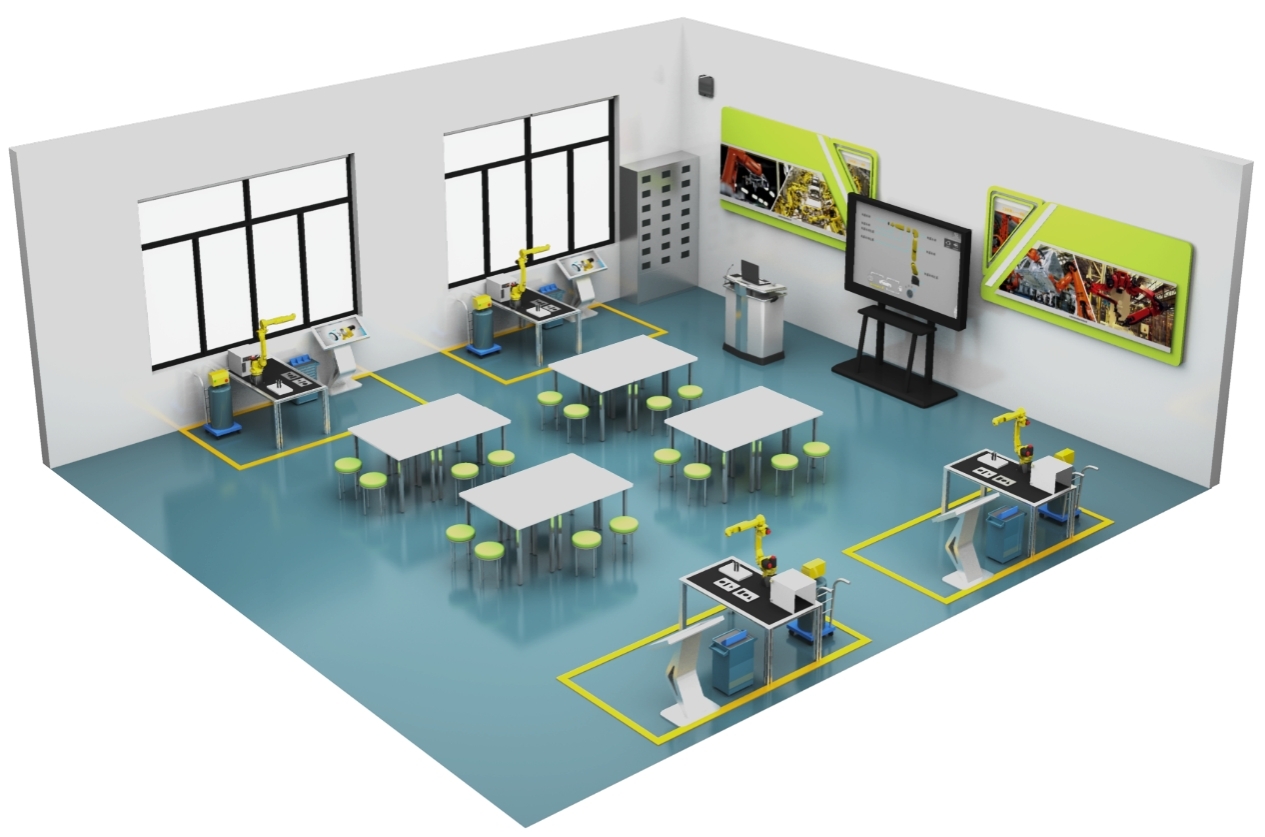

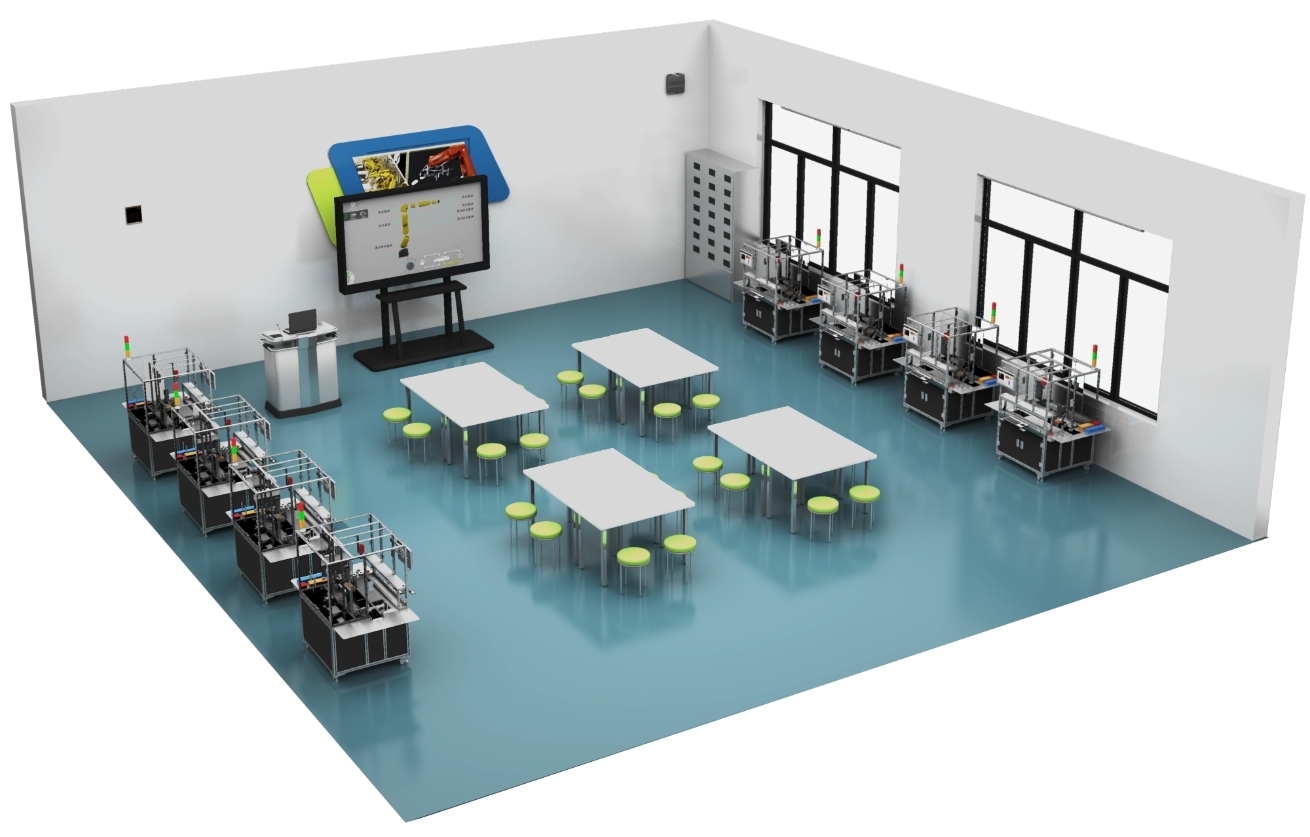

​Industrial robot integration classroom, FANUC Siemens industrial robot simulation training center

Industrial robot integration classroom, FANUC Siemens industrial robot simulation training center, Mitsubishi industrial robot training room, and palletizing industrial robot training room

Function Description:

This area cooperates with the course "industrial robot fixture design and application" for practical training and teaching, develops and configures different task carriers according to the task requirements, trains students' understanding of the robot end effector, and adopts modular design for the workbench, which has the characteristics of independence, compatibility and mobility, and can be continuously developed and upgraded according to the needs of customers.

List of main equipment:

Sn type module content unit quantity

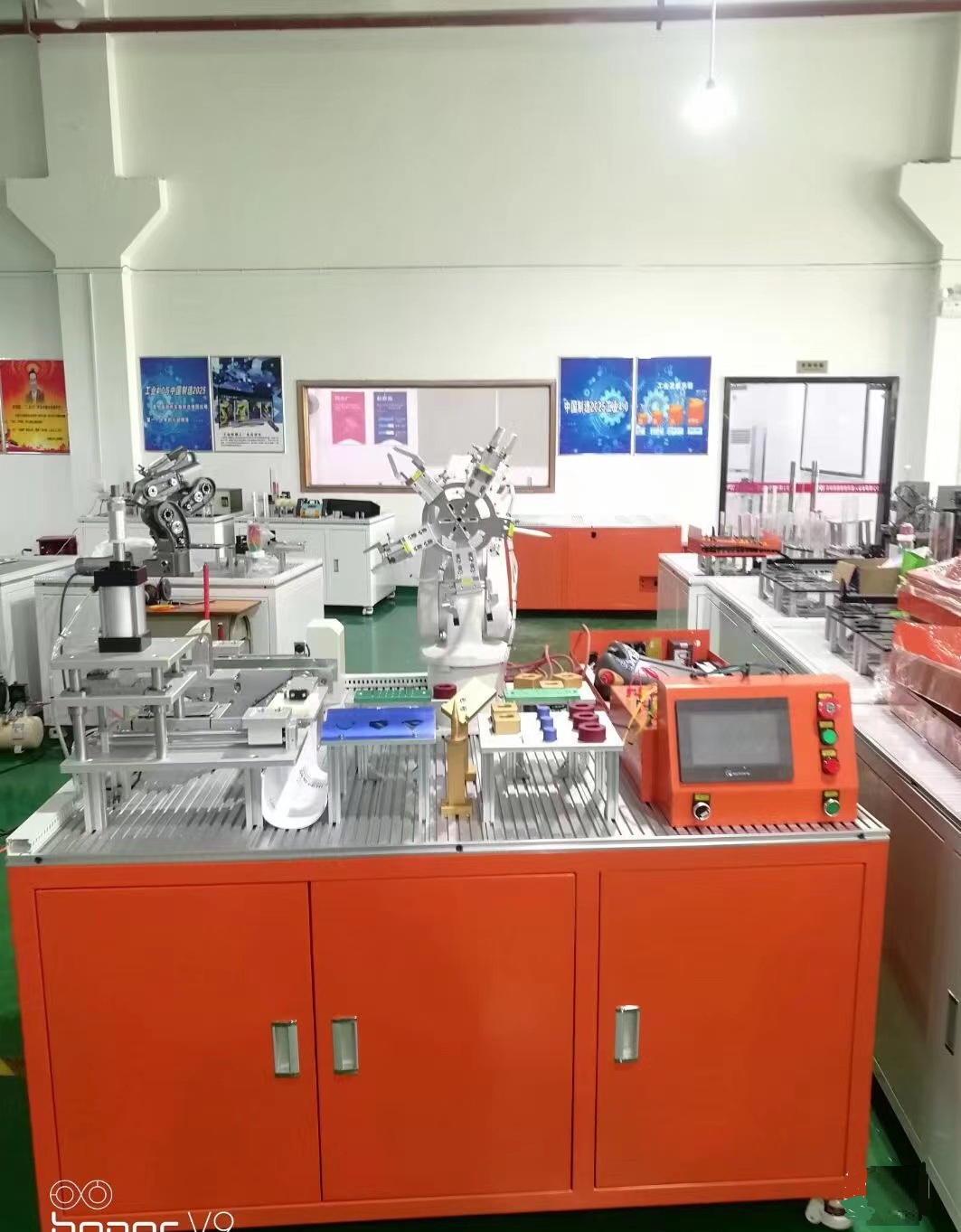

Pneumatic test bench set of fixture test and application workstation

2 three axis robot sleeve 8

3 PLC control module table 8

4 cylinder external clamp sleeve 8

5 vacuum suction cup clamp sleeve 8

(6) special welding fixture sleeve (8)

7 digital course package "industrial robot fixture design and application" set 1

8 information equipment 70 # intelligent teaching terminal 1

9 cultural construction functional area culture (wall charts, signs, cultural portraits, glass stickers, modeling, etc.) set 1

Function Description:

Visual inspection technology is a new technology with the most development potential in the field of precision testing technology. It is widely used in food, daily chemical and other production and processing fields, and has a broad application prospect in modern manufacturing industry. The region supports the implementation of machine vision technology. The functions that can be realized include packaging box detection, printing code error detection, workpiece size detection, etc.

List of main equipment:

Sn type module content unit quantity

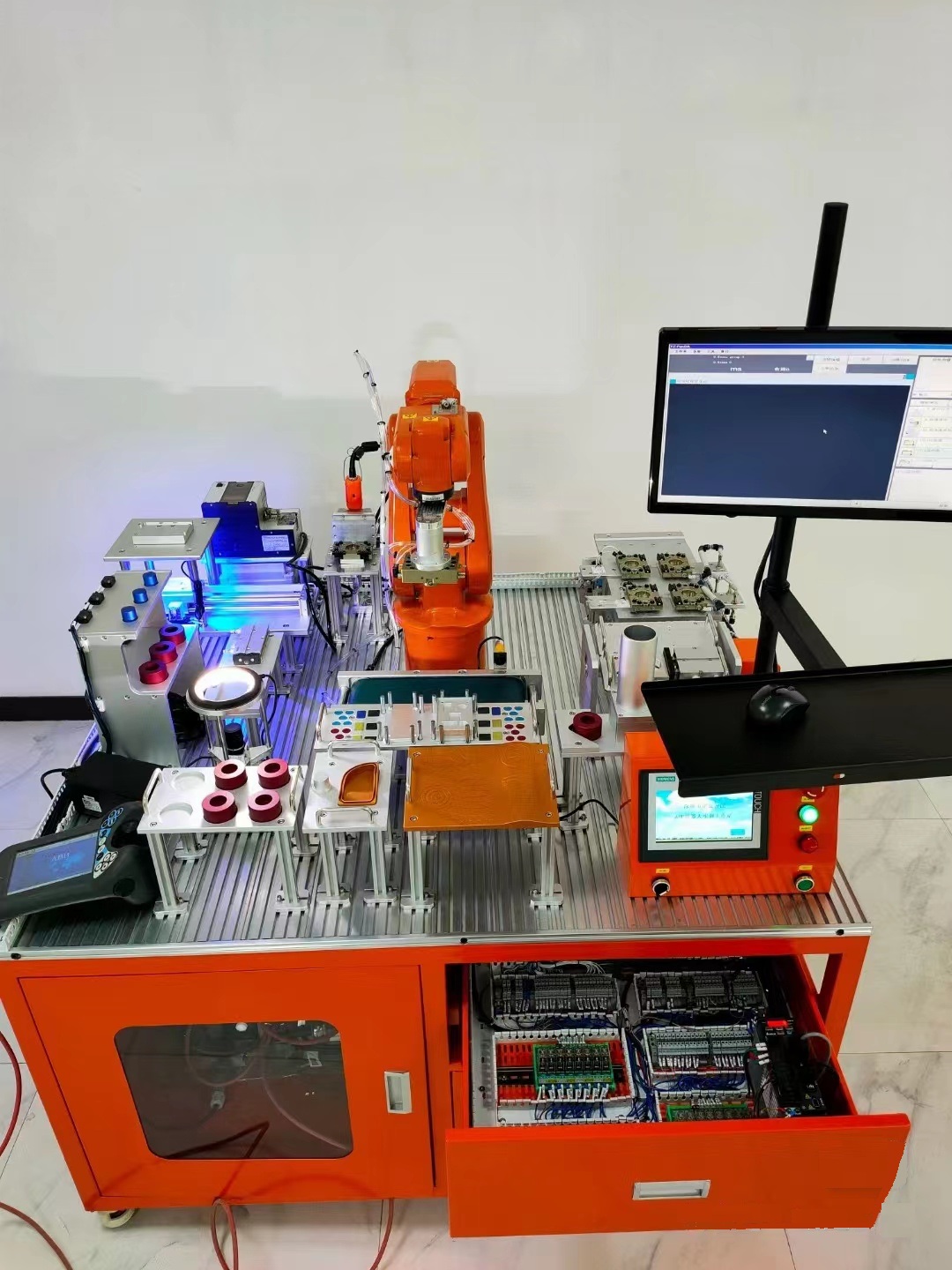

Machine vision and debugging application workstation Venus Smart Camera Kit

2 smart camera matching algorithm set 8

3) material table of structural parts 8

4 other peripheral equipment sets 8

5 digital course package machine vision technology set 1

6 information equipment 70 # intelligent teaching terminal 1

7 cultural construction functional area culture (wall charts, signs, cultural portraits, glass stickers, modeling, etc.) 1 set

Function Description:

The disassembly and maintenance of mechanical and electrical components of industrial robots is a common work in the daily application of industrial robots. This workstation selects industrial grade small robots to carry out modular design of various parts, configure assembly and debugging worktables, and provide detailed teaching instructions to support the practical training of robot maintenance.

List of main equipment:

Sn type module content unit quantity

Robot disassembly and maintenance workstation (robot body cover)

2) control cabinet sleeve 4

3 teaching pendant Table 4

(4) manual oil pump sleeve (4)

(5) workpiece placement table cover (4)

6 mobile tool box cover 4

(7) parts placement box cover (4)

(8) disassembly and assembly of table cover (4)

9 disassembly and assembly kit set 4

10 digital course package "industrial robot maintenance and repair" set 1

(11) virtual simulation software: industrial robot virtual structure principle display set (1)

11 information equipment 70 # intelligent integrated machine 1

12 cultural construction functional area culture (wall charts, signs, cultural portraits, glass stickers, modeling, etc.) set 1
