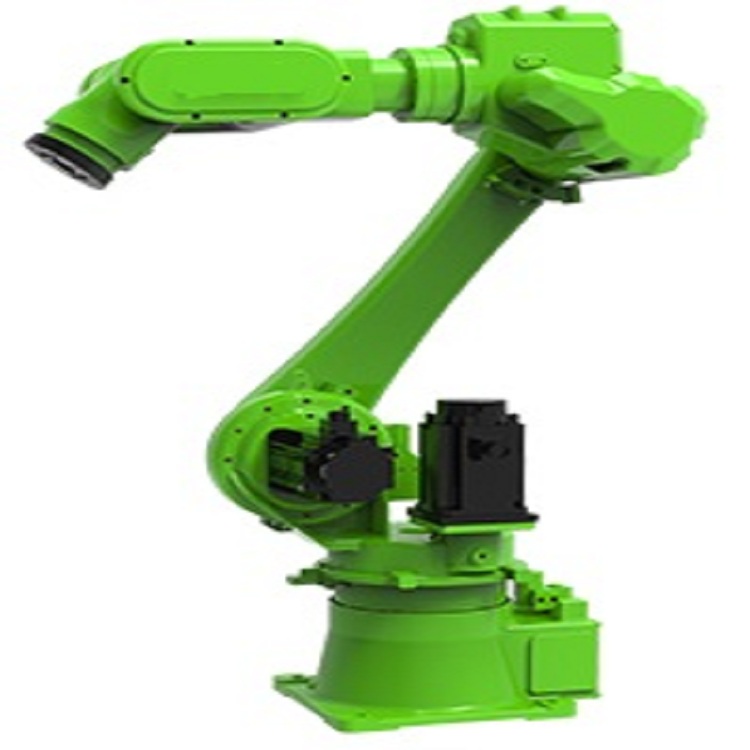

CRM Grinding and sorting robot CRM-1850-6-B
Model: CRM-1850-6-B
Action type: Multi joint type
Rated load : 30kg
Motion radius: 1850mm
Weight: 250kg
Number of axes : 6 axis

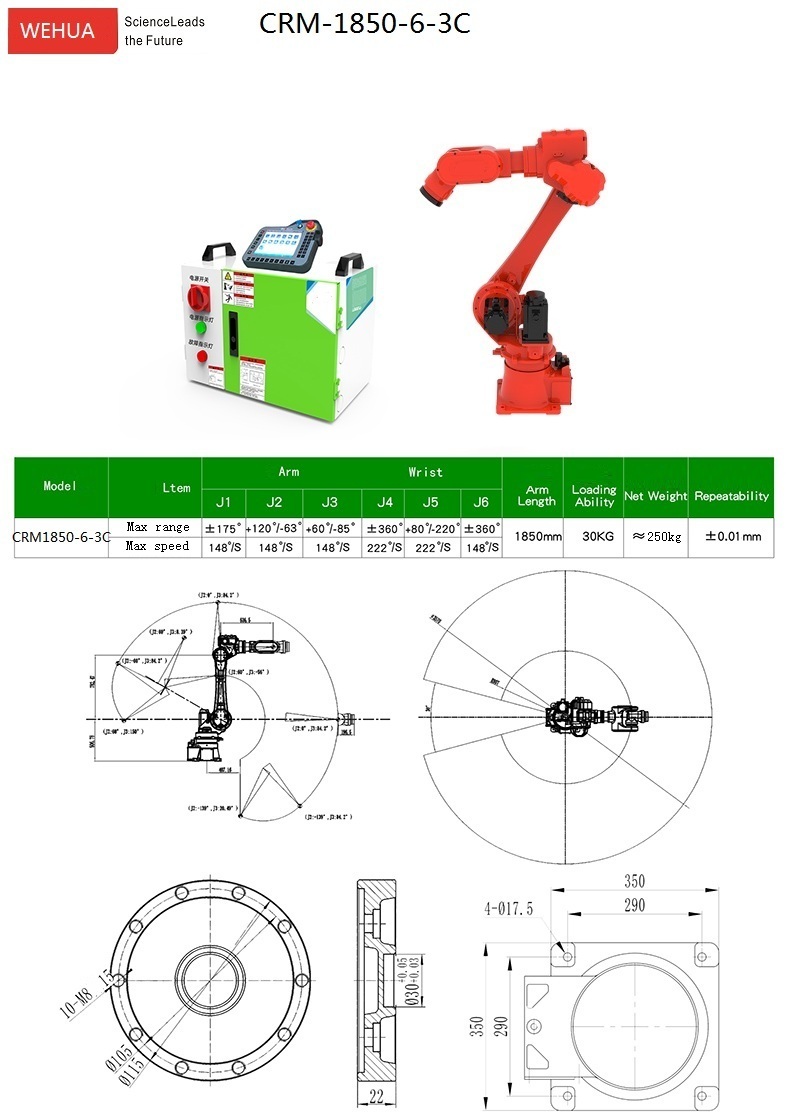

Model | CRM-1850-6-B | Action type | Multi joint type |
Rated load | 30KG | Motion radius | 1850 |
Repeatpositioning accuracy(mm) | ±0.05 | Protection level: | IP65 |
Scope of work | First axis | ±175º | |
Second axis | +120º/-63º | ||
Third axis | +60º/-85º | ||
Fourth axis | ±360º | ||
Fifth axis | +80º/-220º | ||
Sixth axis | ±360º | ||
Max speed | First axis | 148º/sec | |
Second axis | 148º/sec | ||
Third axis | 148º/sec | ||
Fourth axis | 222º/sec | ||
Fifth axis | 222º/sec | ||
Sixth axis | 148º/sec | ||
Weight（kg） | ≈250 | axis | 6 |
structural style | Series connection | Installation method | Ground installation and bracket installation |
Ambient temperature | 5℃~45℃ | Applicable industry | Spraying and polishing robot Argon arc welding, laser welding, high-precision welding robot |
