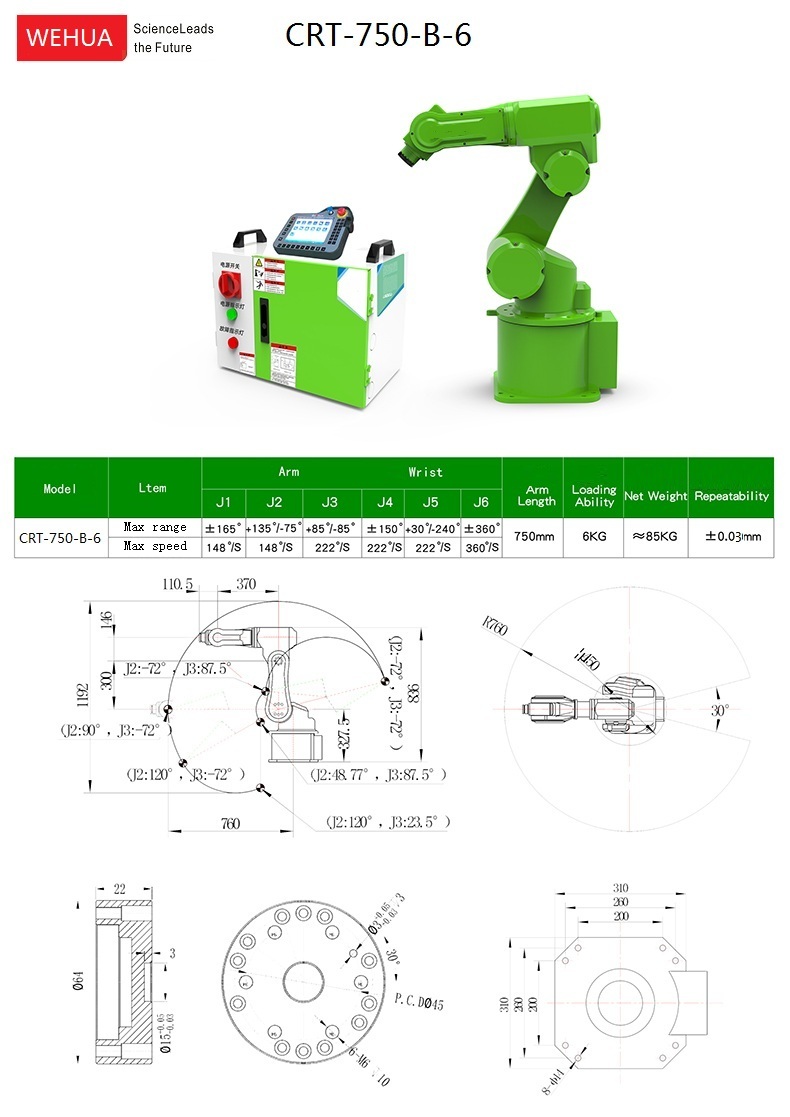

CRT Spray type series six axis robot CRT-750-6-B
Model: CRP-750-6-B
Action type: Multi joint type
Rated load : 6kg
Motion radius: 750mm
Weight: 85kg
Number of axes : 6 axis
Model | CRT-750-6-B | Action type | Multi joint type |
Rated load | 6KG | Motion radius | 750 |
Repeatpositioning accuracy(mm) | ±0.05 | Protection level: | IP65 |
Scope of work | First axis | ±165º | |
Second axis | +135º/-70º | ||
Third axis | +85º/-85º | ||
Fourth axis | ±150º | ||
Fifth axis | +30º/-240º | ||
Sixth axis | ±360º | ||
Max speed | First axis | 148º/sec | |
Second axis | 248º/sec | ||
Third axis | 222º/sec | ||
Fourth axis | 222º/sec | ||
Fifth axis | 222º/sec | ||
Sixth axis | 360º/sec | ||
Weight（kg） | ≈85 | axis | 6 |
structural style | Series connection | Installation method | Ground installation and bracket installation |
Ambient temperature | 5℃~45℃ | Applicable industry | Material handling, parts transmission, stacking, deburring, cutting, etc |
